Safe Power Distribution: The Heart of Hospital Electricals
A Distribution Board (DB) is more than just a box of switches; it is the critical junction that protects your hospital's equipment and patients from electrical faults. SR One Roof Solutions designs and installs industrial-grade DBs that ensure balanced load distribution, preventing overloads that could trip power to vital areas like ICUs or Operation Theatres.
Types of DB Installations
We configure boards based on the specific load requirements of each hospital zone:
- Main Distribution Boards (MDB): The primary panel receiving power from the transformer/generator and distributing it to sub-circuits.
- Sub-Main Distribution Boards (SMDB): Floor-wise or department-wise panels (e.g., Radiology Wing DB).
- Final Distribution Boards (FDB): Room-specific boards supplying power to lights, fans, and medical sockets.
Advanced Circuit Protection
Safety is non-negotiable. We equip every board with high-quality protection devices from trusted brands (Schneider, Legrand, ABB):
- MCB (Miniature Circuit Breaker): Protects against overloads and short circuits.
- RCCB/ELCB (Residual Current Circuit Breaker): Instantly cuts power in case of earth leakage, preventing fatal electric shocks to patients or staff.
- Surge Protection Devices (SPD): protect sensitive medical electronics from voltage spikes.

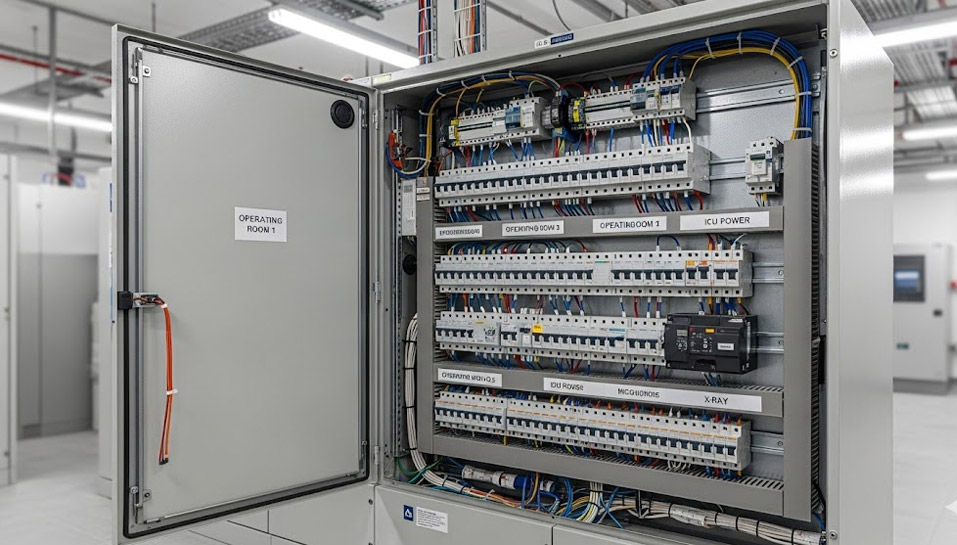

Organization & Labeling
In an emergency, maintenance staff must know exactly which switch controls which area. We adhere to strict "Good Workmanship" standards:
- Neat Dressing: All wires are ferruled, bunched, and cable-tied.
- Clear Labeling: Every breaker is labeled (e.g., "ICU Bed 1", "OT Light").
- Color Coding: Strict adherence to RYB (Red, Yellow, Blue) phase coding for 3-phase systems.
